| 詳細信息 |
| 信息編號：S371207

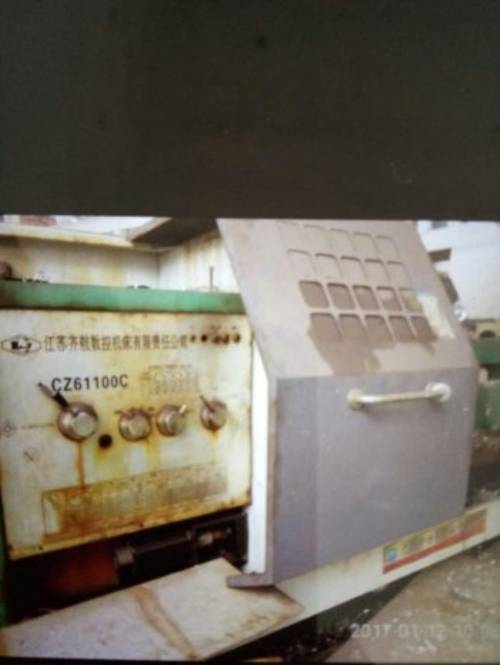

【價格電議，特價處理】江蘇齊航CZ61100C車床，長度1米的，特價處理 ，廣數系統 江蘇齊航CZ61100C/CZ62100C官方數據 ：技術范圍MAIN SPECIFICATIONS型號MODELCZ6180C/CZ6280CCZ61100C/CZ62100CCZ61120C/CZ62120C加工能力CAPACITIES床身上最大回轉直徑Max.swing over bed800mm1000mm 1200mm橫拖板上最大回轉直徑直徑Max.swing over cross slide485mm685mm 685mm兩頂尖距Center distance1000 1500 2000 3000 4000 5000 6000 8000 10000mm馬鞍上最大回轉直徑Max.swing over gap1000mm(CZ6280C)1200mm(CZ62100C) 1400mm(CZ62120C)花盤前馬鞍有效長度Valid length of gap300mm(CZ6280C)300mm(CZ62100C) 300mm(CZ62120C)床身寬度Bed width550mm床頭箱HEADSTOCK 主軸孔徑Spindle hole105mm主軸端部尺寸Spindle noseC-11 or D-11主軸錐孔Spindle taper1:20主軸轉速范圍（級數）Spindle speeds14-750RPM(18STEPS)進給箱GEARBOX-THREADS & FEEDS 公制螺紋范圍（種數）Metric threads range(kinds)1-240mm(54kinds)英制螺紋范圍（種數）inch threads range(kinds)28-1inch(37kinds)模數螺紋范圍（種數）Moudle threads rage(Kinds)0.5-60DP(27kinds)經節螺紋范圍（種數）Diametral threads range(Kinds)30-1t.p.i. (27kinds)縱向進給范圍（種數）Longtudinal feeds rage(Kinds)0.05-22.8mm/r(72kinds)橫向進給范圍（種數）Cross feeds:Long./Cross0.015-7.6mm/r(72kinds)快速進給：縱向/橫向Rapid feed:Long./Cross6/2m/min絲杠尺寸：直徑/螺距Leadscrew size:Diameter/PitchT48mm/12mm拖板CARRIAGE 橫拖板行程Cross slide travel420mm小刀架行程Compound rest travel240mm車刀桿尺寸Size of tool shank32x32mm尾座TAILSTOCK 尾座套筒直徑Spindle diameter100mm尾座套筒錐度Spindle taperMORSE #6尾座套筒行程Spindle travel205mm電機MOTOR 主電機Main drive motor11kw冷卻泵電機Coolant pump motor0.09kw快速進給電機Rapid feed motor0.18kw凈重KGNIT兩頂尖距為：(1500mm)Center distance: (1500mm) 4500kg 5000kg 5500kg 外形尺寸（長x寬x高） .WEIGHT FLOOR SPACE(LxWxH)兩頂尖距為：(1500mm) Center distance: (1500mm) 3452x1326x1390 設備在江蘇 |
|
|
